Product Description

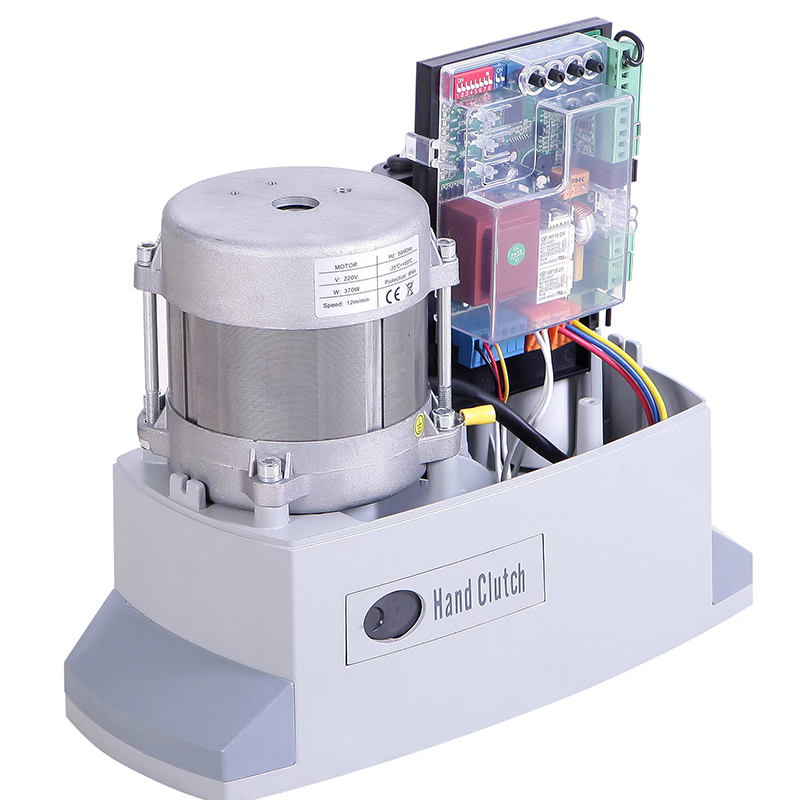

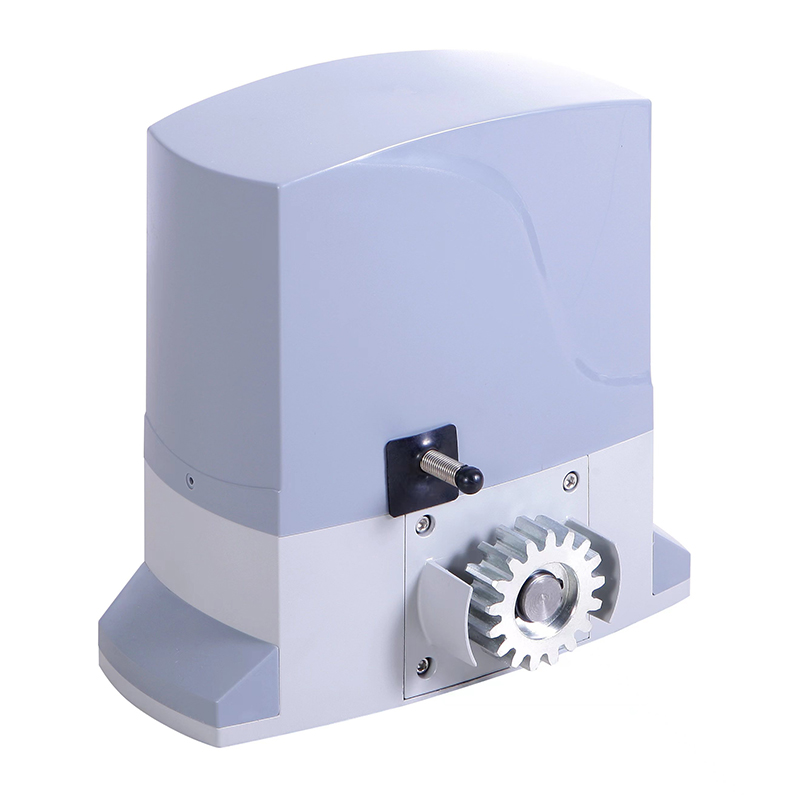

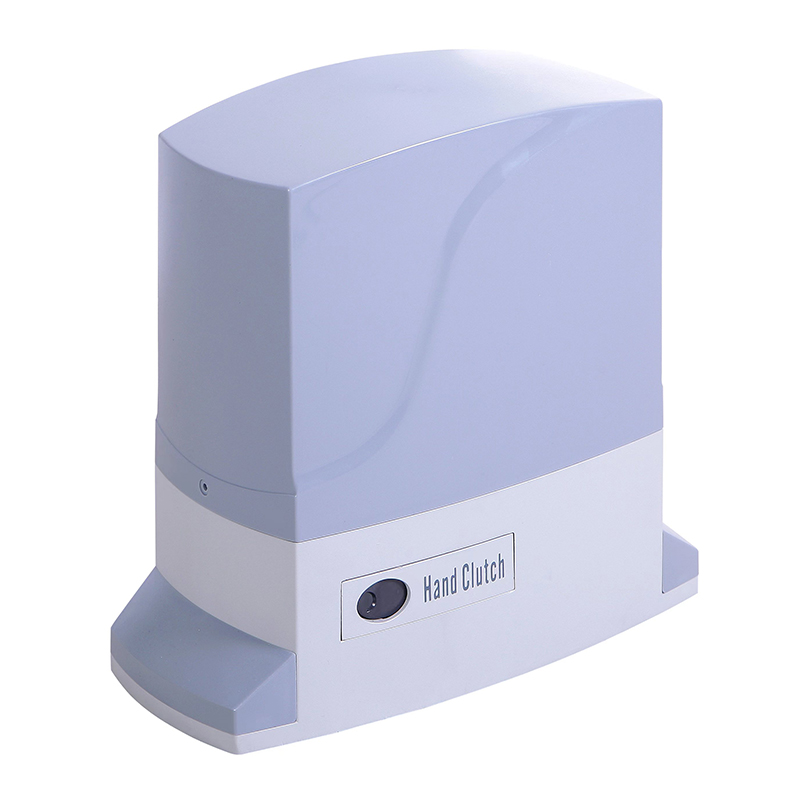

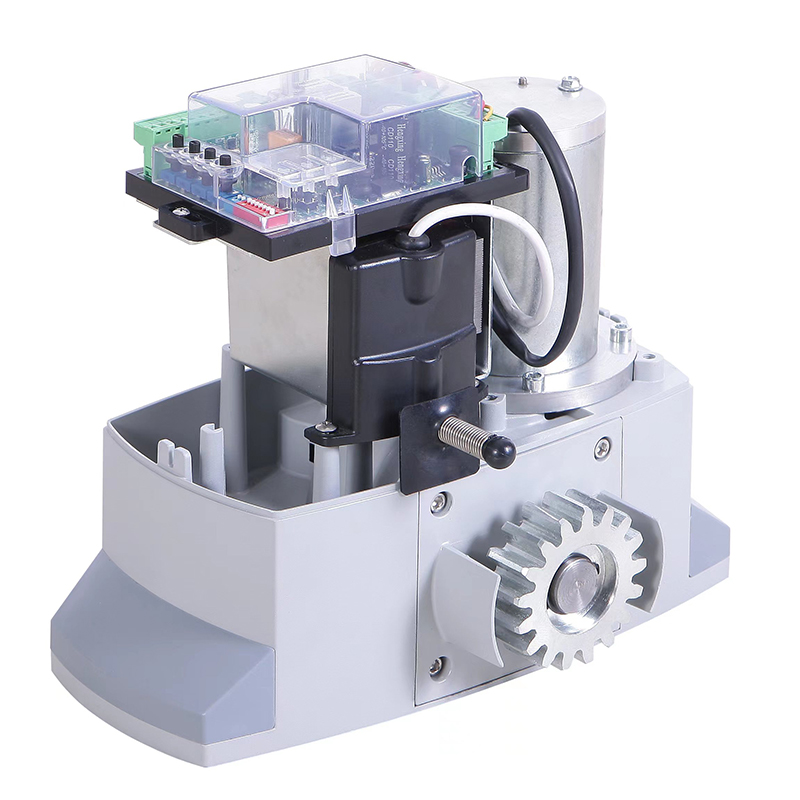

QN-600B is the new Sliding gate opener.The open door weighs up to 1500 kilogramsand is used in homes.Its innovative gear motor,which meets international standards,can Responding to the most complex security requirements.
Product Feature
The motor will be automatically cut off when the temperature reaches the rated value.
Gear with end cover protection, more secure and reliable.
Turbo worm transmission mechanism,transmission stability.
Auto-shuttering back the door against touching, Soft start and soft stop.
Convenient installation, when power failure can open the clutch, manual opening.
| Item No. | QN-600A | QN-600B |
| Input Voltage | 220V/50Hz | 220V/50Hz |
| Motor speed | 1400r/min | 1400r/min |
| Output torque | 25N.m | 32N.m |
| Motor power | 370W | 550W |
| Max gate weight | 1000kg | 1500kg |
| Gate speed | 12m/min | 12m/min |
| Limit switch | Spring/Magnetic NO/NC | Spring/Magnetic NO/NC |
| Temperature | -45°C~+65°C | -45°C~+65°C |
| Noise | <56dB | <56dB |
| Gear teeth | 17T/19T | 17T/19T |
| Size(mm) | 297(H)X325(L)X185(W) | 297(H)X325(L)X185(W) |
