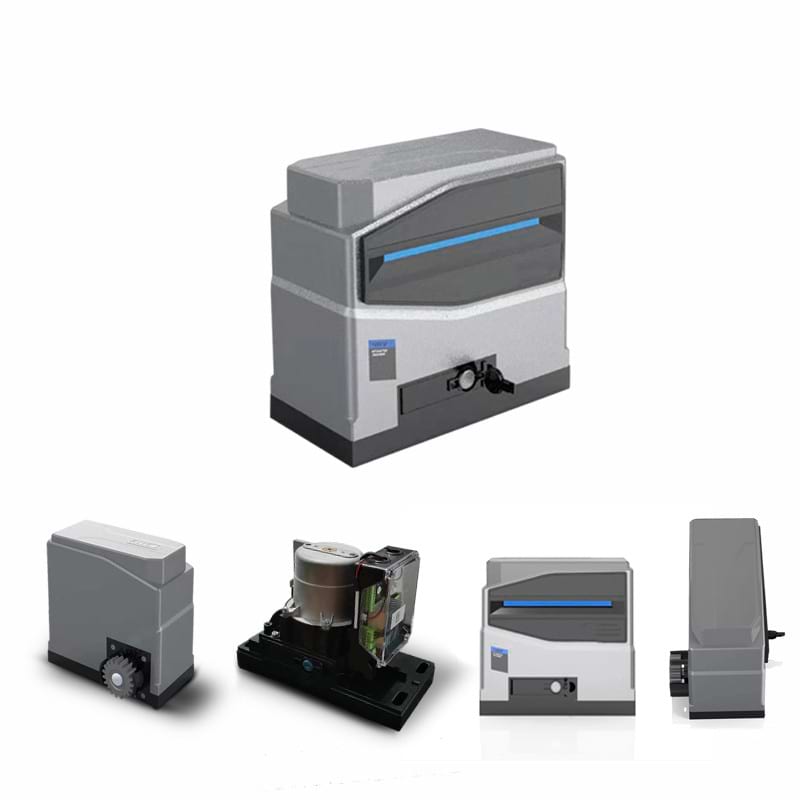

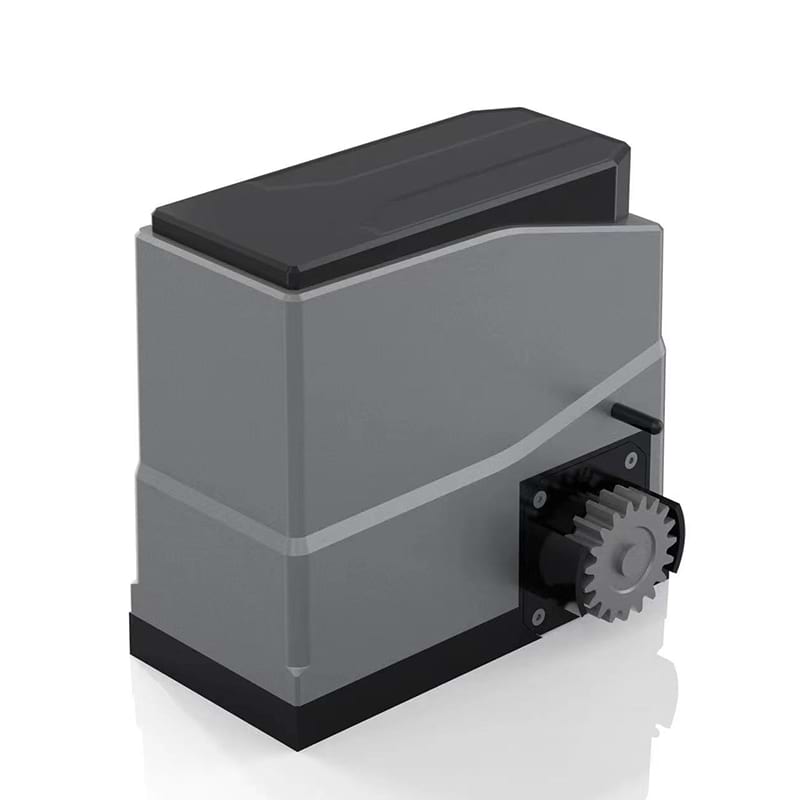

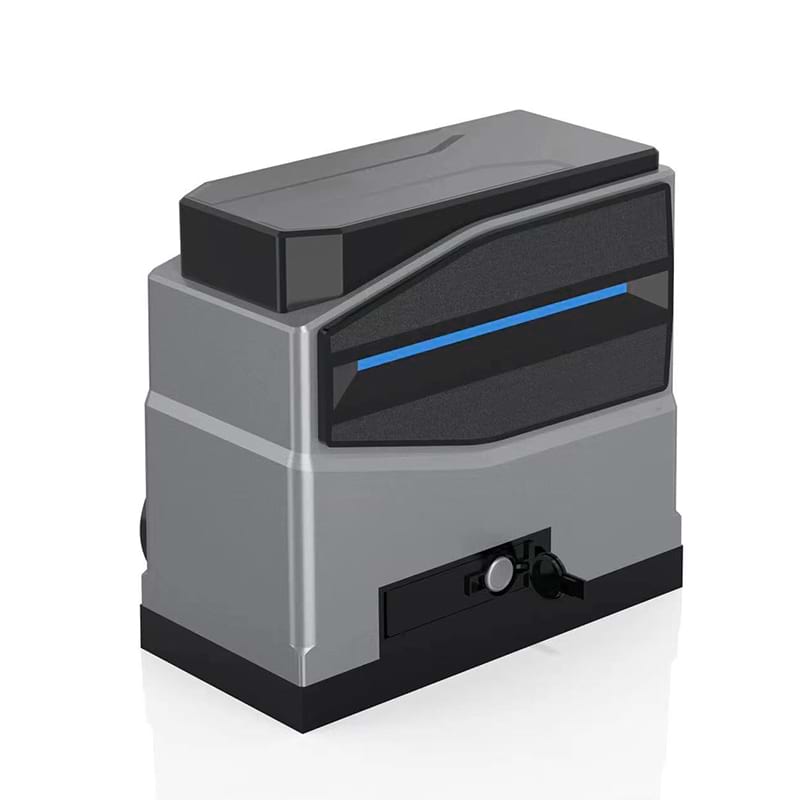

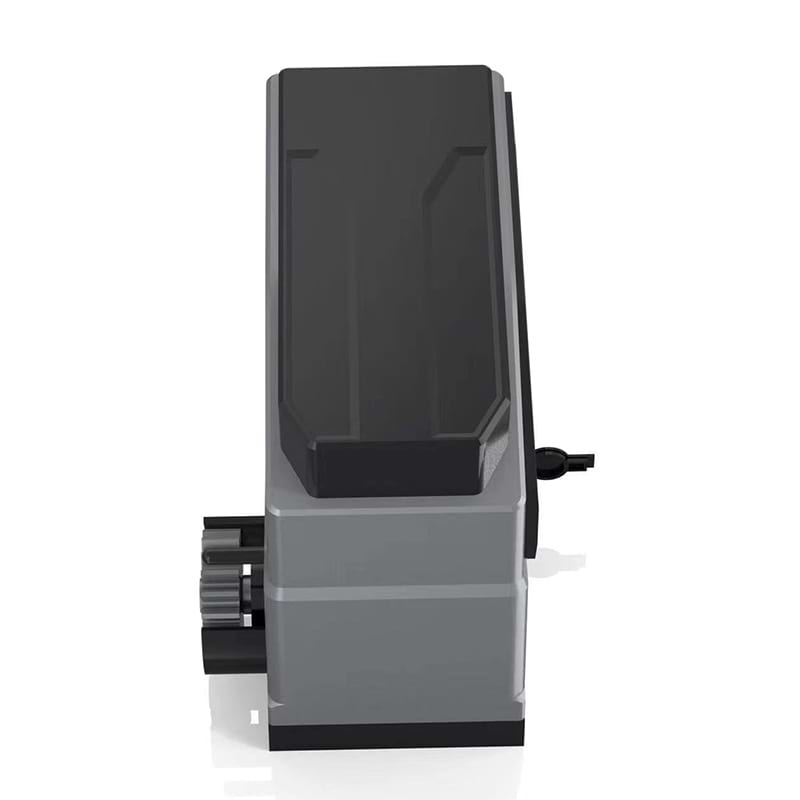

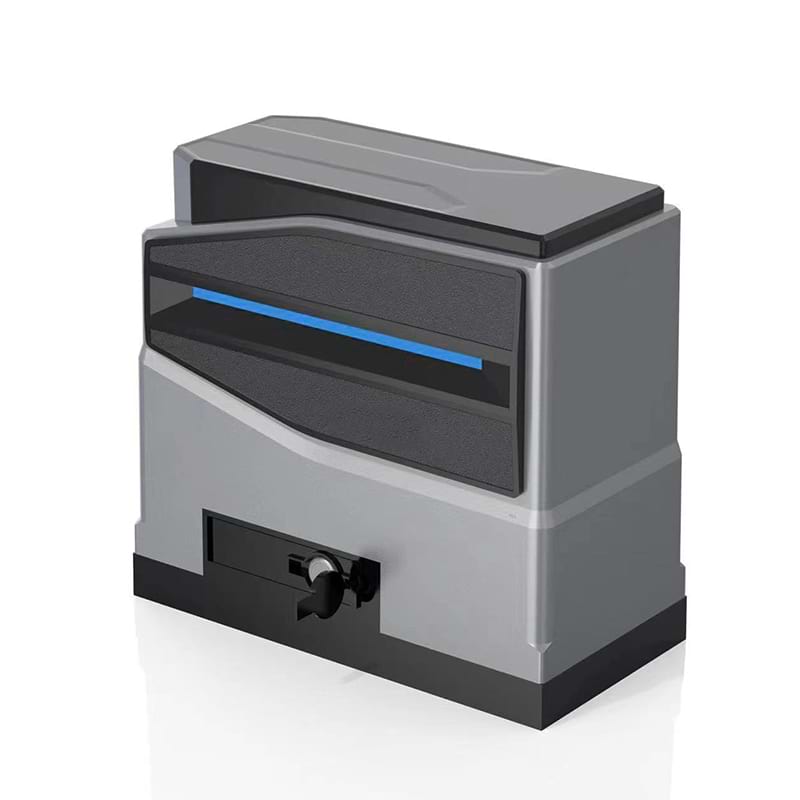

The 1200-4000kg Frequency Conversion Automatic Electric Door Operator Sliding Gate Opener is a cutting-edge solution designed to provide efficient and reliable operation for sliding gates in a wide range of applications. This robust and technologically advanced gate opener is engineered to meet the demands of heavy-duty gates, offering enhanced security, convenience, and longevity.
Energy-saving and efficient frequency conversion motor, built-in control board.
Automatic closing function, adjustable speed
automatic closing within the time.
Soft start and stop
rebound in resistance
Overheating protector
external infrared device anti-collision anti-clip acceptable
Interface for card reader, password, face recognition, and remote control of mobile phone.
Manual clutch when power failure
| Parameters | |||||
| model | QN-FC1200 | QN-FC1500 | QN-FC2000 | QN-FC3000 | QN-FC4000 |
| Power supply | 220 | 220 | 220 | 220 | 220 |
| Input Voltage | AC220 | AC220 | AC220 | AC220 | AC220 |
| Working temperature | -20°C~+50C | -20°C~+50C | -20°C~+50C | -20°C~+50C | -20°C~+50C |
| Max. Gate Weight | 1200 | 1500 | 2000 | 3000 | 4000 |
| Limit mode | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Remote control frequency | 433 | 433 | 433 | 433 | 433 |
| Running Speed | 4~26M/min | 4~26M/min | 4~26M/min | 4~26M/min | 4~26M/min |
| Max. Remote control Q'ty | 125 | 125 | 125 | 125 | 125 |
