QN-530 Automatic Sliding Door System Opener for Commercial

The Smart Autodoor is an advanced automatic door system featuring cutting-edge technology to provide a seamless and secure entrance solution.
Contact Us PDF Download

QN-530 Automatic Sliding Door System Opener for Commercial

Product Advantages

Product Description

The autodoor uses DC motor to generate the most suitable power at low voltage and additionally install an emergency special battery for purpose of door opening in case of power-off. It has an intelligent master controller to easily control the door-opening width and speed and it is easy to connect to the access control system. To avoid mistakenly clamp pedestrians, it is installed with an automatic anti-clamping return device. Hanger of door leaf uses double traveling wheels, greatly eliminating the noise of door leaf during running and extending the use life of pulleys.

Product Feature

1. It has a full digital computer control system with good anti-interference performance, stable operation, small noise and stable parameters.automatic calibration algorithm to conduct precise position detection and automatic speed regulation calculation for heavy and light doors, which make the door has more stable and reliable working performance. A variety of functions are availblbe to meet the needs of different users.

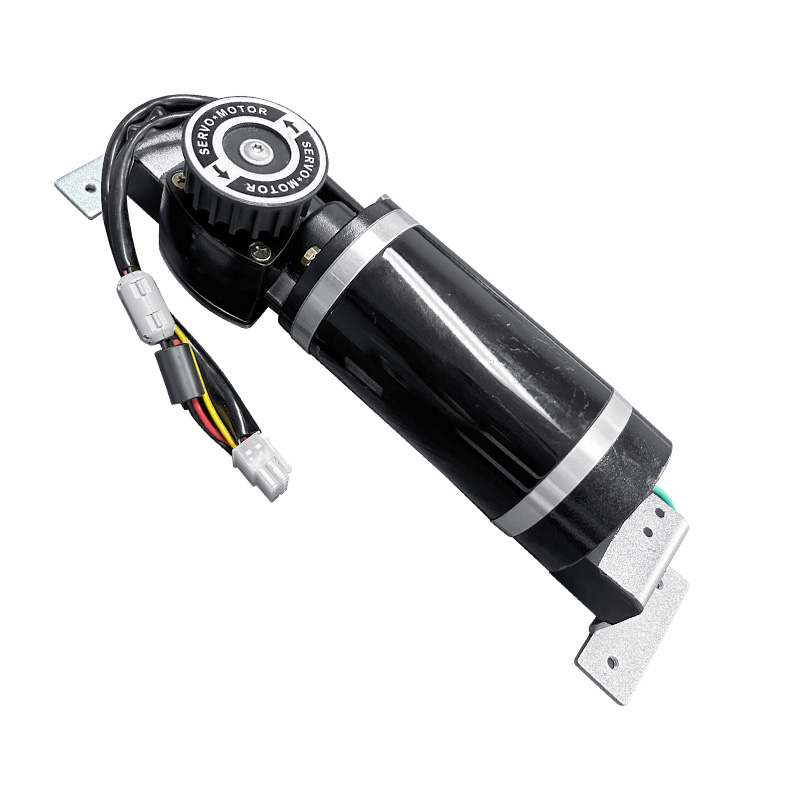

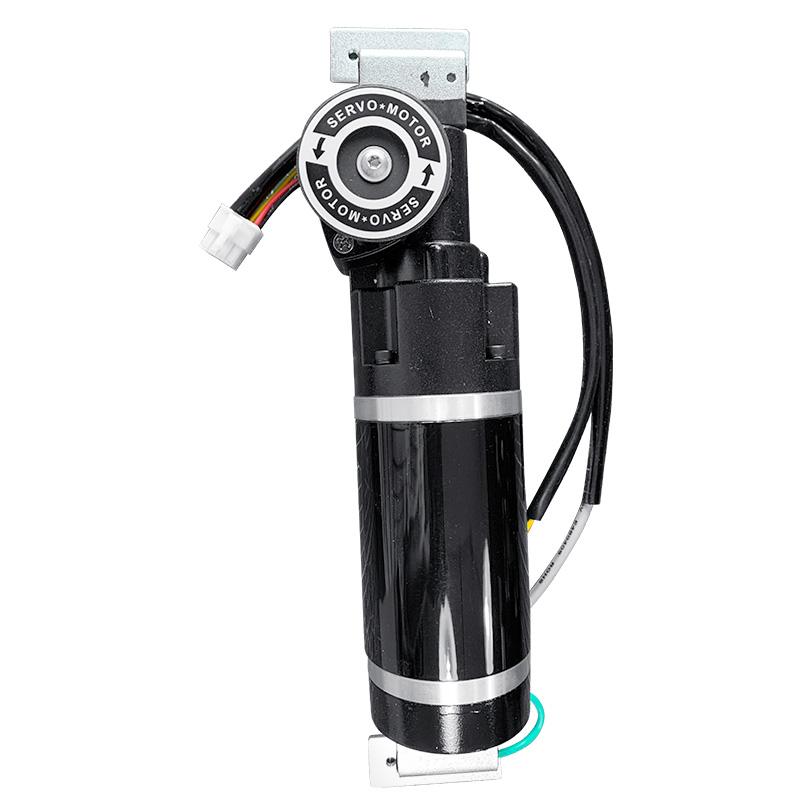

2. It uses DC servo motor, which has the electric lock function .Precise manufacturing technology and turbine worm rotation structure make the motor run silently, greatly improving the rotating torque and transfer efficiency.Stepless variable rotation and uniform and stable run effectively reduce running noise.

3. It uses broadband power supply voltage design (170V-264V) to ensure complete functions.

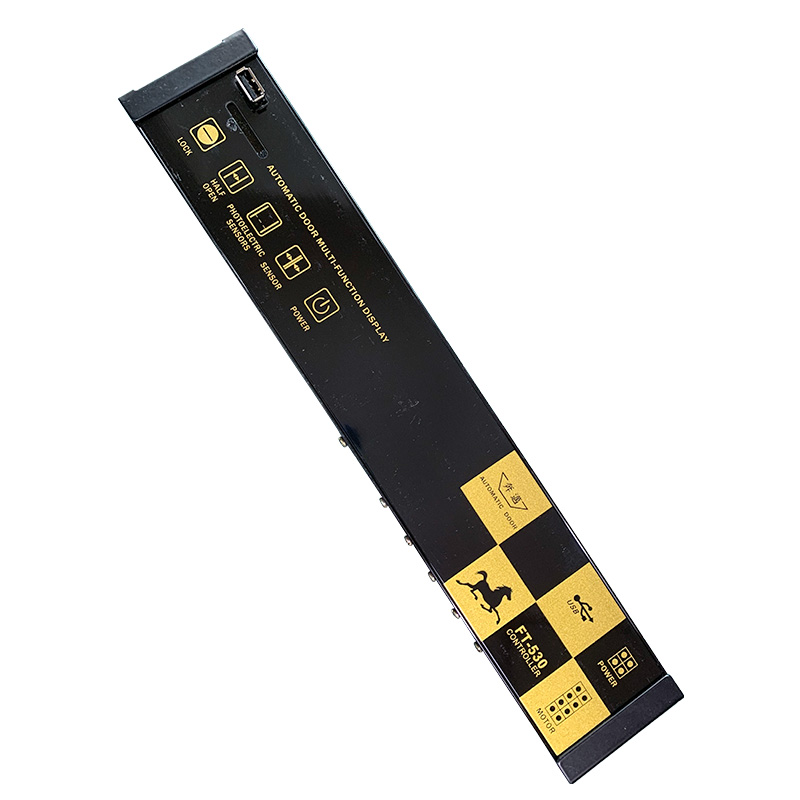

4. Touch screen debugger, full of sense of science and technology, smooth running speed ,product functions and parameter settings are chear at a glance ,bringing great convenience to customers.

5. Six built remote control, six functional modes to choose from, perfect functions greatly meet the needs of customers , and can be individually connected to access control ,doorbell and other equipment.




Product Parameters


Model

Single Door

Double doors

Door Weight

200kg*1

200kg*2

Amplitude of  Door

Single:DW=600-1500mm

Double:DW=800-1300mm

Amplitude of  Door Opening

Single:W=1400-4200mm

Double:W=2300-4200mm

Closing Speed

150-500mm/sec

Opening Time

Adjustable at 0.5s 49.5s, adjusting 1 equals to 0.5s, 100 refers to normally open and close.

Manual Opening and  Closing Force




±5kg below

Power Supply

AC170V-264V 50/60HZ

Electronic Controller

micro-computer process controller

Motor

DC motor

Selection of Environment

Ambient temperature: -20 +50; and ambient humidity: 30%-85%RH (with no icing or condensation)
